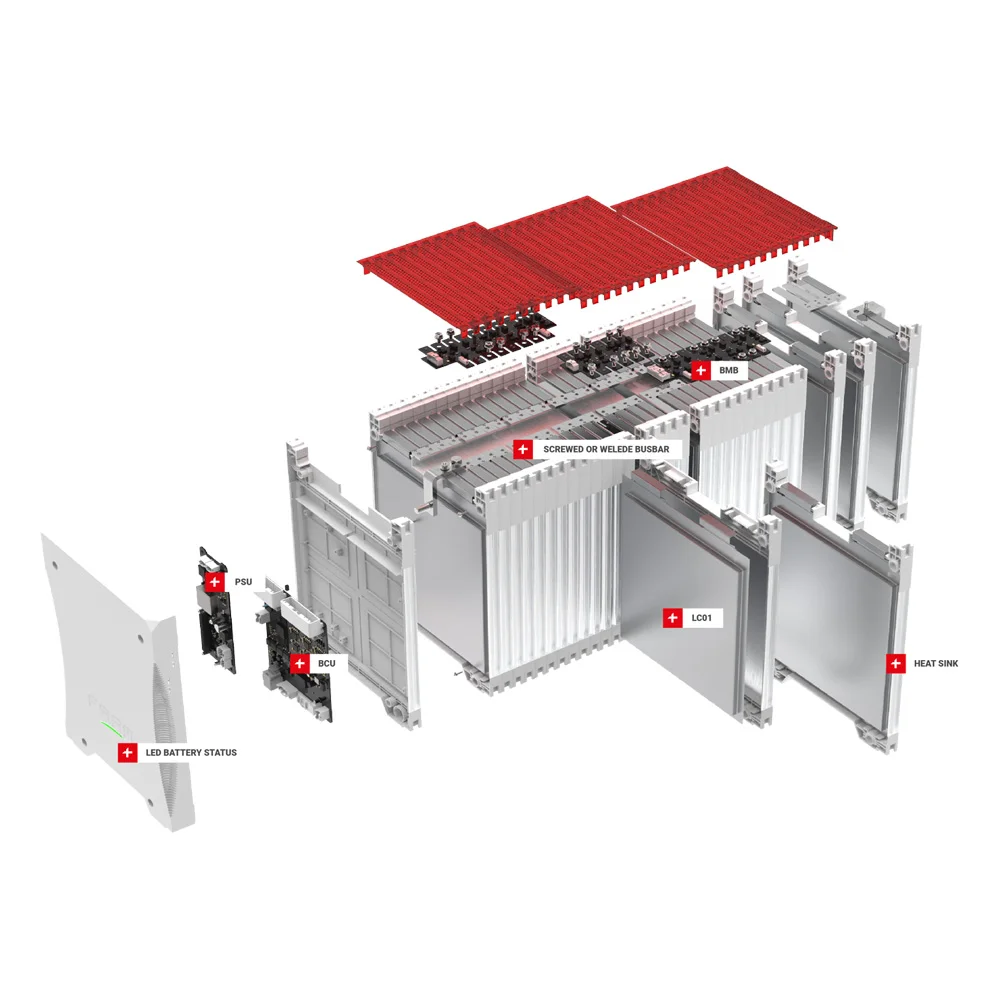

Kombi Module

The Kombi series products represent the most innovative solution in energy storage for both motive power and storage solutions.

Their long battery life, high charging speed, maintenance free and safety make Kombi modules the perfect solution where performance, durability, safety and energy efficiency need not be compromised.

The battery module will be managed and monitored by the BMS (Battery Management System) made by FAAM (designed and manufactured in-house), which of course also allows extreme flexibility in adapting our systems to other complementary systems.

Key Features:

  • Configuration: 1S40P ÷ 40S1P
  • Nominal voltage: 3,2 V ÷ 128 V DC
  • Nominal energy: 0,128 kWh ÷ 5,12 kWh
  • Energy (DoD 80%): 0,102 kWh ÷ 4,096 kWh
  • Nominal Capacity: 50 Ah ÷ 2000 Ah
  • Capacity Usable (DoD 80%): 40 Ah ÷ 1600 kWh
  • Nominal current in discharge: 1C A
  • Maximum current in discharge: 2C A
  • Peak current in discharge (10 s): 3C A
  • Nominal charge current: 0,5C A
  • Maximum continuous current in charge: 1C A
  • Minimum voltage (cut-off): 2,5 V
  • Maximum voltage: 3,6 V
  • Efficiency (25°C): 98%
  • Estimated life: >10 years
